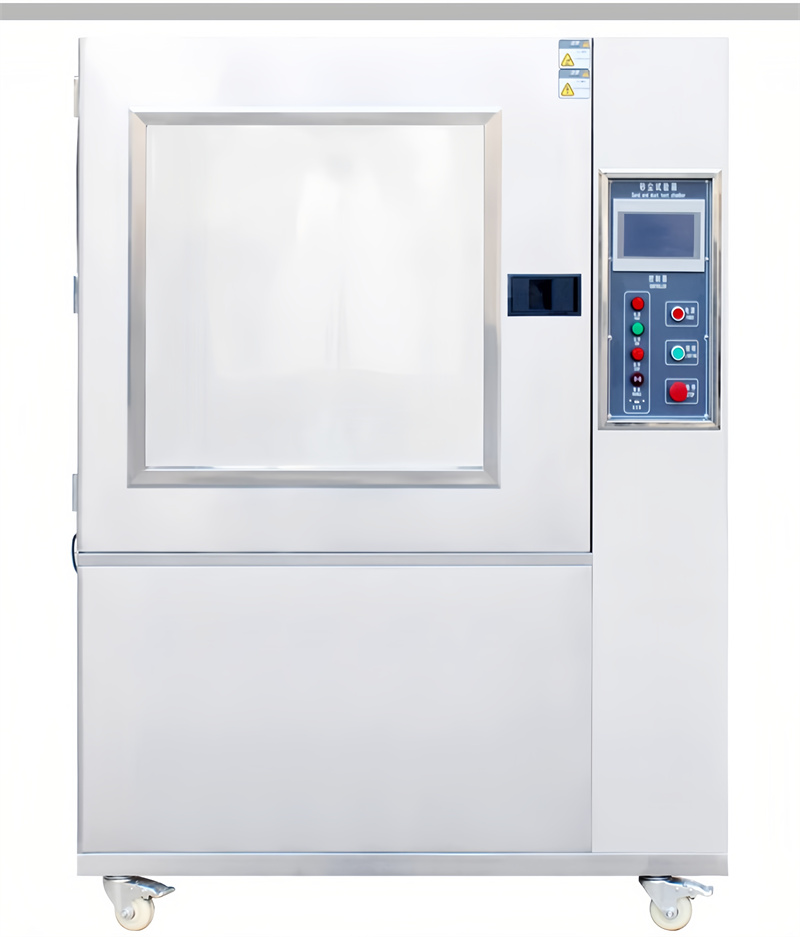

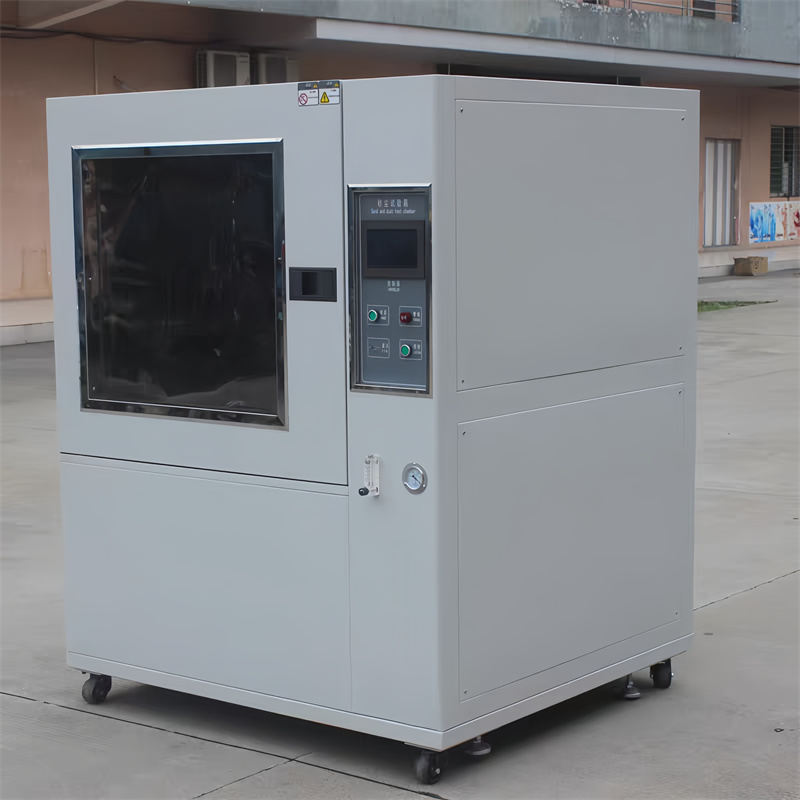

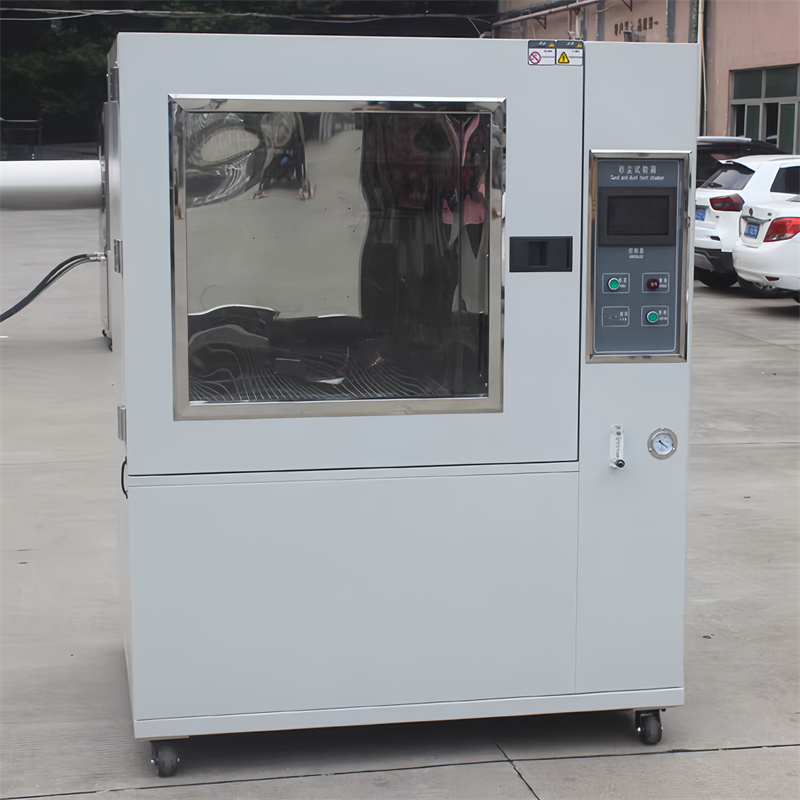

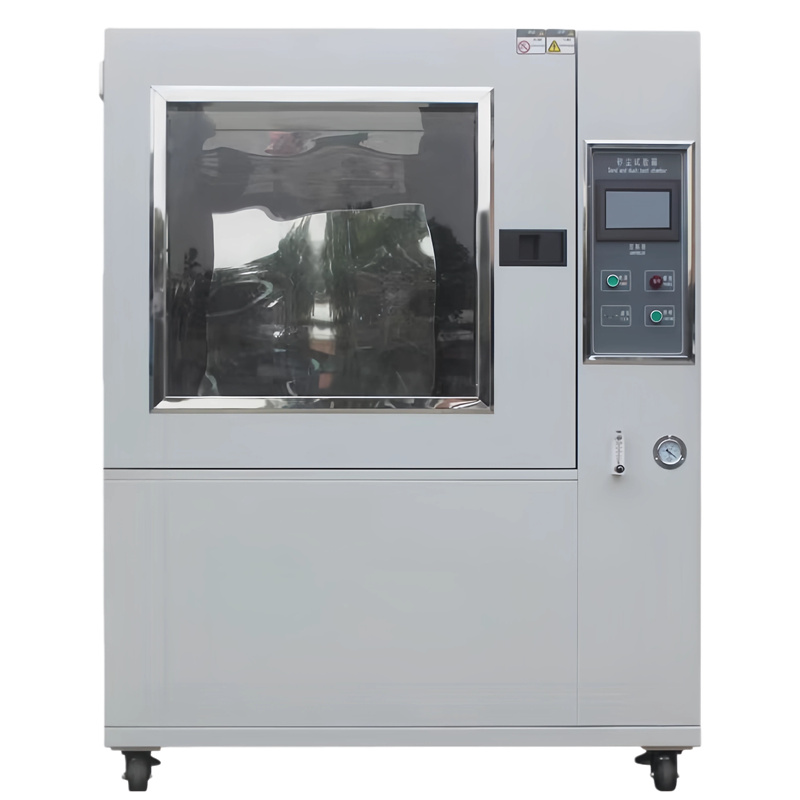

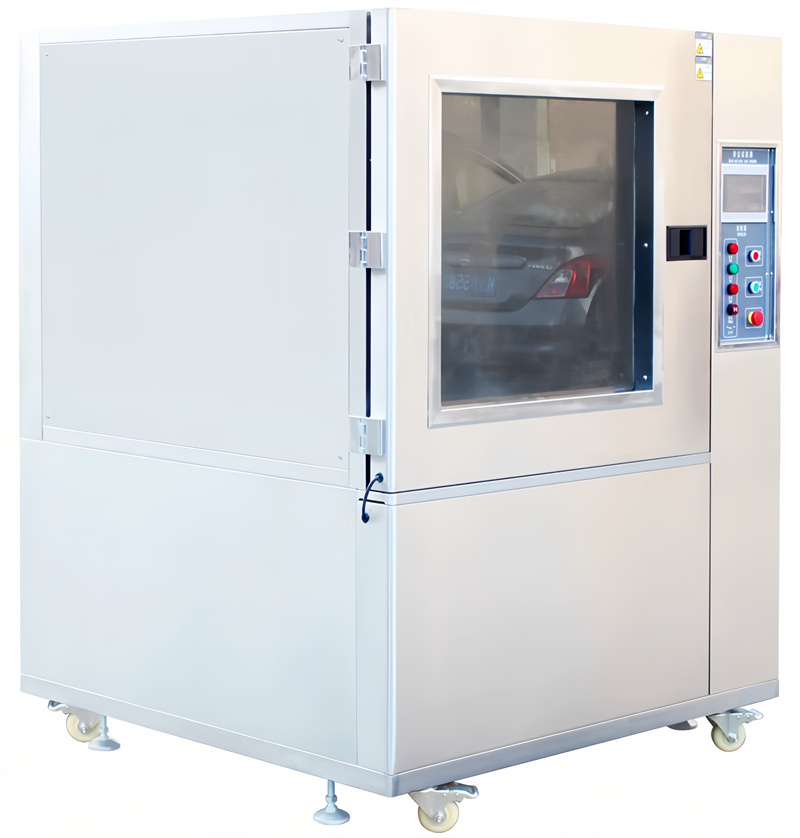

沙尘试验机
沙尘试验机
用途use：
沙尘试验机用于检测产品的外壳密封性能，主要是按照IP5X和IP6X两个等级的试验方式，模拟产品在生产运输、贮存过程中遇到的砂尘环境，从而检验其外壳的防护性能。砂尘试验箱用于检测产品的外壳密封性能，主要是按照IP5X和IP6X两个等级的试验方式，模拟产品在生产、运输、贮存过程中遇到的砂尘环境，从而检验其外壳的防护性能。
The dust and sand test machine evaluates the enclosure sealing performance of products through IP5X and IP6X-rated tests, simulating sand and dust exposure during production, transportation, and storage to assess protective capabilities. The dust and sand test chamber performs similar evaluations using the same IP5X and IP6X standards, replicating real-world environmental conditions to verify the enclosure's protective performance.
特点feature：
设备有载灰尘垂直循环的气流，试验用灰尘可以循环使用，整个风道采用进口高级不锈钢板制作，风道底部与锥形料斗接口连接，风机进出风口直接与风道连接，再在适当的位置上将工作室顶部扩散口接入工作室体，形成“0”型闭式垂直吹尘循环系统，使气流能顺畅地流动，最大限度的使尘士分散均匀。采用单台大功率低噪音离心风机，根据试验需要用变频调速器来调节风速。
The equipment features a vertically circulating airflow system for dust treatment under load conditions. The test dust can be reused, and the entire duct is constructed with imported high-grade stainless steel plates. The duct base connects to a conical hopper interface, while the fan's inlet and outlet are directly linked to the duct. At strategic positions, the diffuser at the top of the working chamber is integrated into the chamber body, forming a closed "O" -shaped vertical dust-circulation system. This design ensures smooth airflow and maximizes dust dispersion. A single high-power, low-noise centrifugal fan is employed, with variable frequency drive (VFD) speed regulation for precise airflow control according to experimental requirements.
符合标准Compliant standards：
符合GB/T2423.37 电工电子产品环境试验《第二部分试验方法 试验L沙尘试验国家标准》
Complies with GB/T2423.37 "Environmental Test for Electrical and Electronic Products-Part 2: Test Method-Test L: Dust Test" (National Standard)
技术参数Technical Parameters：
1.600内箱尺寸:宽600、深600、高600MM;
2.外箱尺寸:宽1100、深850、高1800 MM;
3.800内箱尺寸:宽800、深800、高800MM;
4.外箱尺寸:宽1300、深1050、高2000 MM;
5.1000内箱尺寸:宽1000、深1000、高1000MM;
6.外箱尺寸：宽1500、深1250、高2200MM
7.控制方式：彩屏触摸控制器(韩国)
8.内箱材质：304不锈钢
9.外箱材质：304不锈钢
10.视窗口尺寸：400X400 MM
11.吹尘方式：尘往下吹
12.滑石粉吹尘浓度：2KG ~4KG/m³
13.测试风速：0.5~8.9M/S
14.试验尘：干燥滑石粉
15.温度范围：RT+10 至 70°
16.金属筛网线经：50UM
17.空气/灰尘-混合物的密度为：5KG/m³±2KG/m³
18.振击时间：1-999分钟可调
19.试验时间：1-999分钟
20.使用电源：220V、2KW
1.600 Inner box dimensions: 600mm wide, 600mm deep, 600mm high;
2. Outer box dimensions: 1100mm wide, 850mm deep, 1800mm high;
3.800 Inner box dimensions: 800mm wide, 800mm deep, 800mm high;
4. Outer box dimensions: 1300mm wide, 1050mm deep, 2000mm high;
5.1000 Inner box dimensions: 1000mm wide, 1000mm deep, 1000mm high;
6. Outer box dimensions: 1500mm wide, 1250mm deep, 2200mm high;
7. Control method: Color touchscreen controller (Korea);
8. Inner box material: 304 stainless steel;
9. Outer box material: 304 stainless steel;
10. View window size: 400×400mm;
11. Dust blowing method: Downward dust blowing;
12. Talcum powder dust concentration: 2kg to 4kg/m³
13. Test wind speed: 0.5–8.9 m/s;
14. Test dust: Dry talcum powder;
15. Temperature range: RT+10 to 70°C;
16. Metal mesh wire diameter: 50μm;
17. Air/dust mixture density: 5kg/m³ ±2kg/m³;
18. Vibration time: Adjustable from 1 to 999 minutes;
19. Test duration: 1 to 999 minutes;
20. Power supply: 220V,2kW
